Cervélo Bikes Buyer's Guide
Check out our Cervélo buyer's guide and find the perfect road, gravel, triathlon or TT bike for smashing your cycling goals.
All The Cervélo Info You Need In One Place
In this buyer's guide, we've boiled down the most important features of the Cervélo lineup so you can make the best decision for your cycling goals. We'll take a quick look at the most important tech that sets Cervélo apart and then dive right into breaking down each model. Let's get started.
A quick word on Cervélo tech
Unparalleled stiffness for unparalleled performance
Cervélo frames are some of the stiffest on the market. They reinforce the areas where it's needed most so every watt translates to as much forward momentum as possible. The result is a faster, more responsive, and better handling ride that fills you with confidence at every point in the road.
Innovative aero tubing for maximum speed
Cervélo's unique tube shapes are optimized for each model and provide insane levels of drag reduction and overall speed. Whether you're out on a group ride, racing a gravel epic, or competing in a full ironman triathlon, you can be sure that your bike will be working as hard as you are.
Cervélo Size Chart
Cervelo Bike Frame Size | 48 | 51 | 54 | 56 | 58 | 61 |
---|---|---|---|---|---|---|
Rider Height | 5'0" - 5'3.5" | 5'2.5" - 5'6" | 5'6" - 5'8.5" | 5'8.5" - 5'11" | 5'11" - 6'1" | 6'1" - 6'4" |
Ready to see all the Cervélo models we carry at Summit?
Cervélo Áspero
Áspero Highlights
Discipline: Gravel
Who it's for: The Áspero is for riders who want to race in gravel events, lead the pack in off-tarmac group rides, and hammer out epic solo FKT missions on the path less traveled.
Why you'll love it: At about 1100g frame weight, it's one of the lightest gravel bikes on the market. There's no compromise between speed, versatility, and off-road handling. You'll be faster, nimbler, and more stable on the Áspero than you've ever been on gravel bike.
Áspero Details + Models
Run 700c or 650b
Áspero let's you run the hoops you want so you can take on your next challenge with a winning set of wheels, no matter the terrain. The frame will take a 700x44mm or a 650x50mm tire so you can enjoy ultimate versatility.
Optimum handling thanks to Trail Mixer Fork
Just because a road bike will take a gravel tire doesn't mean the bike will handle with the same level of performance. To solve this, Cervélo created Trail Mixer, a two-position chip in the fork that adjusts the amount of effective trail and keeps the bike dialed and responsive whether you're running 700c or 650b wheels.
Áspero vs Áspero-5
The Áspero-5 is a little lighter and a little more aerodynamic than the Áspero. If you're looking for the absolute best of the best, go with the Áspero-5, but the Áspero is still a world class gravel race weapon.
Read Our Cervelo Áspero-5 Overview
Áspero Geometry
Check out why the Áspero's geo is perfectly suited for ultra fast, demanding rides on challenging surfaces.
48 | 51 | 54 | 56 | 58 | 61 | |
---|---|---|---|---|---|---|
STACK | 505MM | 530MM | 555MM | 580MM | 605MM | 630MM |
REACH | 370MM | 379MM | 388MM | 397MM | 406MM | 415MM |
SEAT TUBE ANGLE | 74.5° | 74° | 73.5° | 73° | 73° | 73° |
TOP TUBE LENGTH | 512MM | 532MM | 553MM | 575MM | 591MM | 608MM |
WHEEL SIZE | 700C | 700C | 700C | 700C | 700C | 700C |
HEAD TUBE ANGLE | 71° | 71.5° | 72° | 72° | 72° | 72° |
TRAIL * | 58.6(700C) 58.1(650B) | 58.6(700C) 58.1(650B) | 58.6(700C) 58.1(650B) | 58.6(700C) 58.1(650B) | 58.6(700C) 58.1(650B) | 58.6(700C) 58.1(650B) |
FORK OFFSET | 52/57MM | 49/54MM | 46/51MM | 46/51MM | 46/51MM | 46/51MM |
HEAD TUBE LENGTH | 83MM | 107MM | 133MM | 159MM | 188MM | 214MM |
BOTTOM BRACKET DROP | 78.5MM | 78.5MM | 76MM | 76MM | 73.5MM | 73.5MM |
FRONT CENTER | 583MM | 592MM | 602MM | 619MM | 637MM | 654MM |
WHEELBASE | 990MM | 1000MM | 1010MM | 1027MM | 1046MM | 1063MM |
STANDOVER HEIGHT | 690MM | 732MM | 764MM | 788MM | 814MM | 838MM |
CHAINSTAY LENGTH | 420MM | 420MM | 420MM | 420MM | 420MM | 420MM |

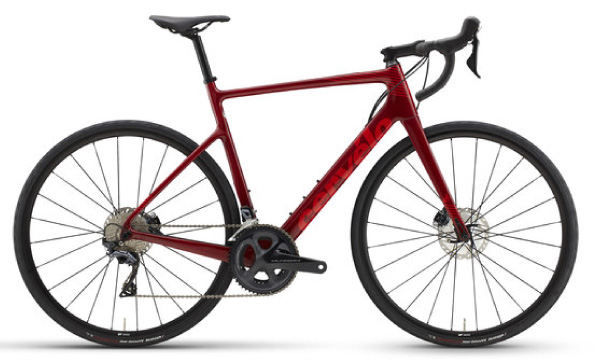

Cervélo Caledonia
Caledonia Highlights
Discipline: Endurance Road
Who it's for: The Caledonia is built for those who want serious speed on epic all-day rides without the epic fatigue you'd get on other road bikes.
Why you'll love it: The Caledonia is sporting beefy road tires, integrated accessory mounts, and an easily removable front derailleur. It's about as versatile and future-proof as you could ask for in a performance road bike.
Details + Models
Integrated accessory mounts
If you're looking for a great balance of performance and practicality, the Caledonia is for you. It doesn't compromise on speed, but has handy mounts for lights, computers, and even fenders, if that's your thing.
Endurance fit for big, happy rides
If you're not racing, you might as well be comfortable. And fast too. Ok, maybe you want to do both. The Caledonia's endurance fit and purebred heritage provide you a seriously quick ride that you can enjoy pedaling all day long.
Geometry
Check out why the Caledonia's geo is perfectly suited for epic days in the saddle that are worth telling stories about.
48 | 51 | 54 | 56 | 58 | 61 | |
---|---|---|---|---|---|---|
STACK | 505MM | 530MM | 555MM | 580MM | 605MM | 630MM |
REACH | 360MM | 369MM | 378MM | 387MM | 396MM | 405MM |
SEAT TUBE ANGLE | 74.5° | 74° | 73.5° | 73° | 73° | 73° |
TOP TUBE LENGTH | 502MM | 522MM | 543MM | 565MM | 581MM | 598MM |
WHEEL SIZE | 700C | 700C | 700C | 700C | 700C | 700C |
HEAD TUBE ANGLE | 70.5° | 71.5° | 72° | 72° | 72° | 72° |
TRAIL * | 60MM | 60MM | 60MM | 60MM | 60MM | 60MM |
FORK OFFSET | 59MM | 53MM | 50MM | 50MM | 50MM | 50MM |
HEAD TUBE LENGTH | 89.5MM | 109.9MM | 136MM | 162.3MM | 191.2MM | 217.5MM |
BOTTOM BRACKET DROP | 76.5MM | 76.5MM | 74MM | 74MM | 71.5MM | 71.5MM |
FRONT CENTER | 579.4MM | 581.7MM | 591.5MM | 608.5MM | 626MM | 643MM |
WHEELBASE | 982.2MM | 984.5MM | 995.2MM | 1012.3MM | 1030.7MM | 1047.8MM |
STANDOVER HEIGHT | 701MM | 741MM | 773MM | 796MM | 834MM | 857MM |
CHAINSTAY LENGTH | 415MM | 415MM | 415MM | 415MM | 415MM | 415MM |

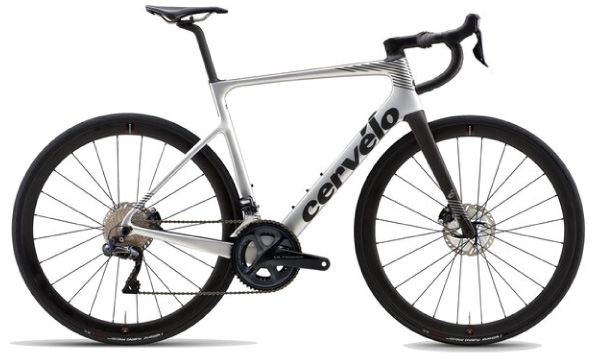

Cervélo Caledonia-5
Caledonia-5 Highlights
Discipline: Endurance Road
Who it's for: The Caledonia-5 is for riders and racers who like to go the distance on all types of road surfaces.
Why you'll love it: Whether it's Roubaix or a beastly local loop on unforgiving roads, the Caledonia-5 will smooth out the ride like no other. You'll fatigue less, and you'll ride faster. Plus, at 900g frame weight, the it's one of the lightest endurance road bikes on the market.
Details + Models
A more aero Caledonia
The Caledonia-5 features more aerodynamic cable routing that makes you even faster than the already quick Caledonia. When you're fighting the forces of nature, you'll want every advantage you can get.
Different fit options
The integrated stem and two bearing cap options allow you to adjust your stack between a full throttle 7mm and a slightly raised 22mm without needing any spacers. That means you'll be able to dial in your ride for extra power and speed on race day, or you can go with slightly more comfort and fatigue fighting capabilities for epic group rides.
Geometry
Check out why the Caledonia-5's geo provides pro level speed on the most challenging roads.
48 | 51 | 54 | 56 | 58 | 61 | |
---|---|---|---|---|---|---|
STACK | 505MM | 530MM | 555MM | 580MM | 605MM | 630MM |
REACH | 360MM | 369MM | 378MM | 387MM | 396MM | 405MM |
SEAT TUBE ANGLE | 74.5° | 74° | 73.5° | 73° | 73° | 73° |
TOP TUBE LENGTH | 502MM | 522MM | 543MM | 565MM | 581MM | 598MM |
WHEEL SIZE | 700C | 700C | 700C | 700C | 700C | 700C |
HEAD TUBE ANGLE | 70.5° | 71.5° | 72° | 72° | 72° | 72° |
TRAIL * | 60MM | 60MM | 60MM | 60MM | 60MM | 60MM |
FORK OFFSET | 59MM | 53MM | 50MM | 50MM | 50MM | 50MM |
HEAD TUBE LENGTH | 89.5MM | 109.9MM | 136MM | 162.3MM | 191.2MM | 217.5MM |
BOTTOM BRACKET DROP | 76.5MM | 76.5MM | 74MM | 74MM | 71.5MM | 71.5MM |
FRONT CENTER | 579.4MM | 581.7MM | 591.5MM | 608.5MM | 626MM | 643MM |
WHEELBASE | 982.2MM | 984.5MM | 995.2MM | 1012.3MM | 1030.7MM | 1047.8MM |
STANDOVER HEIGHT | 712MM | 752MM | 784MM | 807MM | 834MM | 857MM |
CHAINSTAY LENGTH | 415MM | 415MM | 415MM | 415MM | 415MM | 415MM |

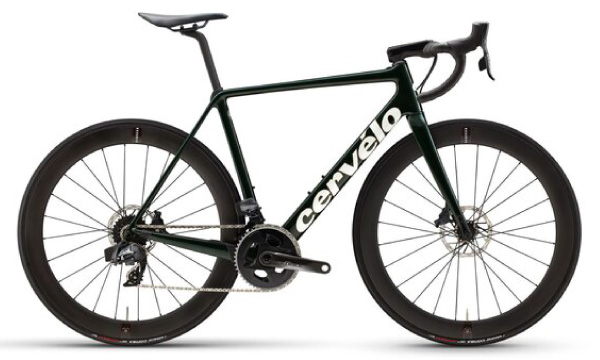

Cervélo R5
R5 Highlights
Discipline: All around road performance
Who it's for: The R5 is perfect for the rider who wants to do it all, and do it all quickly. Whether you find your happy place on mountain climbs or hammering out long desert roads, you'll feel faster and more capable than ever before.
Why you'll love it: The R5 is the stiffest frame Cervélo makes, and you'll love how that translates to the best, most predictable and confident ride quality you've ever experienced. It comes with 25c tires but will fit a 28c.
Details + Models
Maximum stiffness for best-in-class handling
Cervélo's BBright bottom bracket and Squoval Max tubing bring stiffness and aero together in a marriage so good it deserves its own love story. The R5's next level stiffness offers unbeatable power transfer and handling that will rocket you to the front of the pack.
Race ready fit
The R5's Pro Road Fit uses the company's lowest and most areo frame stack height that puts you in position to make the podium.
Geometry
Check out why the R5's geo is perfectly suited for killer speed and performance on just about any road ride you can think of.
48 | 51 | 54 | 56 | 58 | 61 | |
---|---|---|---|---|---|---|
STACK | 499MM | 524MM | 548MM | 572MM | 596MM | 620MM |
REACH | 362MM | 371MM | 380MM | 389MM | 399MM | 408MM |
SEAT TUBE ANGLE | 73° | 73° | 73° | 73° | 73° | 73° |
TOP TUBE LENGTH | 516MM | 516MM | 548MM | 564MM | 581MM | 598MM |
WHEEL SIZE | 700C | 700C | 700C | 700C | 700C | 700C |
HEAD TUBE ANGLE | 71° | 72° | 73° | 73° | 73° | 73° |
TRAIL * | 57MM | 57MM | 57MM | 57MM | 57MM | 57MM |
FORK OFFSET | 51MM | 51MM | 45MM | 45MM | 45MM | 45MM |
HEAD TUBE LENGTH | 83MM | 83MM | 125MM | 151MM | 178MM | 203MM |
BOTTOM BRACKET DROP | 74.5MM | 74.5MM | 72MM | 72MM | 68.5MM | 69.5MM |
FRONT CENTER | 573MM | 573MM | 577MM | 594MM | 611MM | 627MM |
WHEELBASE | 972MM | 974MM | 976MM | 993MM | 1011MM | 1027MM |
STANDOVER HEIGHT | 712MM | 723MM | 753MM | 784MM | 815MM | 846MM |
CHAINSTAY LENGTH | 410MM | 410MM | 410MM | 410MM | 410MM | 410MM |
Cervélo R5-CX
R5-CX Highlights
Discipline: Cyclocross
Who it's for: The R5-CX is perfect for cyclocross racers who are serious about competing for the podium.
Why you'll love it: Designed by Cervélo, tested by pros, the R5-CX has been proven between the tape with numerous World Cup wins.
R5-CX Details + Models
Tested by pro riders
Pro riders Marianne Vos and Wout van Aert were heavily involved in the design of this frame, ensuring that the R5-CX is up to par with some of the most prolific racers in the world.
CX-focused frame
While largely based on the R5 frame, a number of tweaks were made to make the R5-CX perfect for the demands of cyclocross. There's tons of tire clearance for mucky conditions. A D-shaped seat post improves compliance and keeps the saddle facing forward in the event of a crash. Full internal cable routing and electronic-only drivetrains limit the negative effects of grit and grime.
R5-CX Geometry
Check out why the R5-CX geo is perfectly suited for cyclocross glory:
Frame Size | 51 | 54 | 56 | 58 |
---|---|---|---|---|
Reach | mm | 371 | 380 | 389 | 398 |
Stack | mm | 520 | 540 | 560 | 580 |
Head Tube Angle | 71.5° | 71.5° | 71.5° | 72° |
Front Center | mm | 581 | 597 | 612 | 620 |
Bottom Bracket Drop | mm | 63 | 63 | 63 | 63 |
Head Tube Length | mm | 114 | 137 | 163 | 192 |
Top Tube Length | mm | 517 | 536 | 556 | 574 |
Seat Tube Angle | 74.5° | 74° | 73.5° | 73° |
Standover Height | mm | 758 | 778 | 797 | 817 |
Trail | mm | 58.7 | 58.7 | 58.7 | 58.7 |
Wheel Size | 700c | 700c | 700c | 700c |
Fork Offset | mm | 51 | 51 | 51 | 48 |
Wheelbase | mm | 998 | 1014 | 1029 | 1037 |
Chainstay Length | mm | 425 | 425 | 425 | 425 |

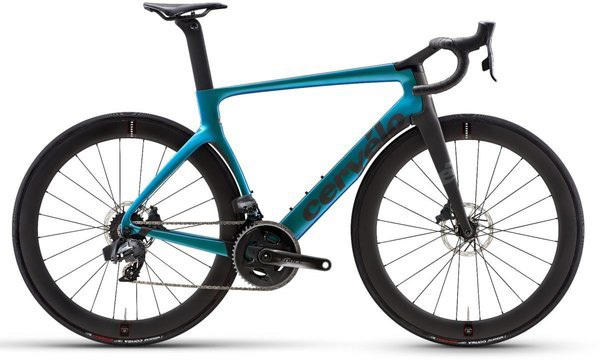

Cervélo S5
S5 Highlights
Discipline: Aero road performance
Who it's for: Sprinters who prioritize aerodynamics and speed above all else will likely drool over the S5.
Why you'll love it: You've never been faster. Guaranteed. We'd say it's unbelievable but Cervélo dispels all illusions and quantifies the ridiculous level of speed with cold hard facts and figures.
Details + Models
The Usain Bolt of road bikes
If that sounds a bit much, keep reading. Maybe even watch the video. We're not joking when we say this bike is on another level. The innovative Cervélo V-Stem is in a class of its own when it comes to aerodynamics. Plus, check out how the thoughtfully designed aero tube shapes and a ridiculously streamlined front end have improved performance over the previous S5 model.
- 42 grams (5.5 watts) faster
- 13% more headtube torsional stiffness
- 25% stiffer bottom bracket
Perfect fit for perfect speed
With multiple options of stem lengths and spacers along with different bar widths and rotation capability, the S5 will be able to help any rider reach new levels of speed with a like-custom fit.
Geometry
Check out why the S5's geo is the end all be all for sprinters.
48 | 51 | 54 | 56 | 58 | |
---|---|---|---|---|---|
STACK | 496MM | 519MM | 542MM | 565MM | 588MM |
REACH | 367MM | 376MM | 384MM | 392MM | 401MM |
SEAT TUBE ANGLE | 73° | 73° | 73° | 73° | 73° |
TOP TUBE LENGTH | 520MM | 535MM | 550MM | 565MM | 581MM |
WHEEL SIZE | 700C | 700C | 700C | 700C | 700C |
HEAD TUBE ANGLE | 71° | 72° | 73° | 73.5° | 73.5° |
TRAIL * | 57.1MM | 57MM | 57.1MM | 57MM | 57MM |
FORK OFFSET | 58MM | 52MM | 46MM | 43MM | 43MM |
HEAD TUBE LENGTH | 69MM | 87MM | 109MM | 130MM | 157MM |
BOTTOM BRACKET DROP | 72.5MM | 72.5MM | 70MM | 70MM | 67.5MM |
FRONT CENTER | 579MM | 580MM | 581MM | 588MM | 604MM |
WHEELBASE | 973MM | 974MM | 975MM | 982MM | 999MM |
STANDOVER HEIGHT | 707.5MM | 729.2MM | 747.4MM | 775.3MM | 805.9MM |
CHAINSTAY LENGTH | 405MM | 405MM | 405MM | 405MM | 405MM |

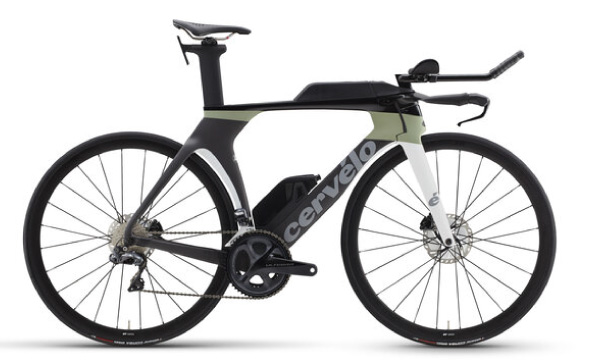

Cervélo P5
P5 Highlights
Discipline: Triathlon + Time Trial
Who it's for: The Cervélo P5 is for the athlete that wants every advantage possible on race day.
Why you'll love it: The P5 is stiffer and lighter than ever, and provides ultimate power transfer and aero capabilities for athletes with gold aspirations.
Details + Models
Fast-adjusting fit that puts you in position to win
The special and aero optimized Cervélo Speed Riser post allows you to make tons of quick fit adjustments so you can fight fatigue and keep the pedal to the metal.
Customizable storage solutions
Cervélo's Modular Storage system is the ultimate solution for carrying your race essentials in a way that's easily accessible and streamlined. It works with both Cervélo parts and other approved accessories.
As aero as aero gets
The P5 slices through the wind tunnel thanks to aero cable management in the frame, fork, and handlebars so you can ride faster and with less drag.
Geometry
Check out why the P5's geo is perfectly suited for the most competitive races in the world.
48 | 51 | 54 | 56 | 58 | |
---|---|---|---|---|---|
STACK | 466MM | 486MM | 502MM | 521MM | 539MM |
REACH | 387MM | 403MM | 417MM | 431MM | 437MM |
WHEEL SIZE | 700C | 700C | 700C | 700C | 700C |
HEAD TUBE ANGLE | 71° | 72.5° | 72.5° | 72.5° | 72.5° |
FORK OFFSET | 52MM | 43MM | 43MM | 43MM | 43MM |
HEAD TUBE LENGTH | 67.5MM | 81MM | 98MM | 117MM | 137MM |
BOTTOM BRACKET DROP | 75MM | 75MM | 75MM | 75MM | 75MM |
FRONT CENTER | 582MM | 583MM | 602MM | 622MM | 640MM |
WHEELBASE | 975MM | 976MM | 995MM | 1015MM | 1033MM |
STANDOVER HEIGHT | 728MM | 754MM | 769MM | 786MM | 804MM |

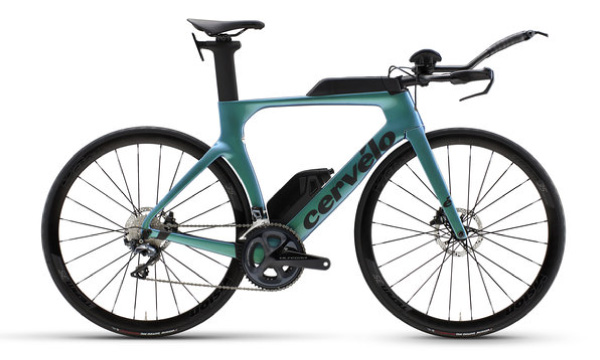

Cervélo P-Series
P-Series Highlights
Discipline: Triathlon + Time Trial
Who it's for: The P-Series is for athletes who are dedicated to elevating their game on race day with maximum effect.
Why you'll love it: The P-Series gives you the the highest levels of power and aerodynamics so you can break through to new levels of speed.
Details + Models
Big improvements over the previous model (P3)
The P-Series has made some serious strides in the name of performance. Check out why this model is even faster:
- 18% stiffer bottom bracket
- 30% more torsionally stiffer overall
- 26g faster bare (18g faster loaded)
Included accessories make it ready for race day
Another great reason to buy the P-Series is that it comes with just about everything you need for race day. Here's a list of everything you can expect to come with your bike:
- Top tube Smartpack 400
- AeroBottle 500
- rear bottle mount
- bento box
Geometry
Check out how the P-Series geo is designed with gold in mind.
48 | 51 | 54 | 56 | 58 | 61 | |
---|---|---|---|---|---|---|
STACK | 485MM | 506MM | 522MM | 540MM | 559MM | 587MM |
REACH | 381MM | 398MM | 412MM | 425MM | 437MM | 443MM |
EFFECTIVE TOP TUBE @75° SEAT TUBE | 511MM | 533MM | 551MM | 570MM | 587MM | 600MM |
EFFECTIVE TOP TUBE @79° SEAT TUBE | 475MM | 496MM | 513MM | 530MM | 546MM | 567MM |
WHEEL SIZE | 700C | 700C | 700C | 700C | 700C | 700C |
HEAD TUBE ANGLE | 71° | 72.5° | 72.5° | 72.5° | 72.5° | 72.5° |
TRAIL * | 62.4MM | 62.4MM | 62.4MM | 62.4MM | 62.4MM | 62.4MM |
FORK OFFSET | 52MM | 43MM | 43MM | 43MM | 43MM | 43MM |
HEAD TUBE LENGTH | 87.5MM | 101MM | 118MM | 137MM | 157MM | 187MM |
BOTTOM BRACKET DROP | 75MM | 75MM | 75MM | 75MM | 75MM | 75MM |
FRONT CENTER | 582MM | 583MM | 602MM | 622MM | 640MM | 654MM |
WHEELBASE | 975MM | 976MM | 995MM | 1015MM | 1033MM | 1047MM |
STANDOVER HEIGHT | 732MM | 758MM | 773MM | 790MM | 808MM | 836MM |
CHAINSTAY LENGTH | 405MM | 405MM | 405MM | 405MM | 405MM | 405MM |
