2023 Yeti SB140
2023 Yeti SB140 release date: November 17, 2022
What type of mountain bike is the Yeti SB140?
Yeti has doubled down on their flagship trail bike, launching two new versions of the SB140 for 2023.
The updated models both rock 29” wheels, a refined carbon frame, and 140mm of rear travel to explore the entire mountain unimpeded and untethered.
The all-new pair means that riders can customize their bike to their riding style— the SB140 Lunch Ride (LR for short) boasts a slightly longer fork and blingier components.
Equipped with improved tech and touches across the board, there’s nothing holding back this versatile trail machine.
Style: Trail
Wheel size: 29”
Front travel: 160mm (LR) or 150mm
Rear travel: 140mm
Head tube angle: 65° (LR) or 65.4°
Effective seat tube angle: 77° (LR) or 77.5°
Size range: S-XXL
Frame: Carbon
Colors: Turquoise, Sangria, Raw Carbon, Sage
Want to get the scoop on inventory?
Chat with us about availability
Or keep scrolling to compare and contrast each model.
Who’s it for?
The SB140 is designed for riders on the hunt for that do-it-all trail bike.
The medium-length suspension and 29” wheels means it’s ready for whatever the mountain throws at it, letting riders prepare for the unexpected and send the routes they discover along the way.
Riders can dream big with this bike that handles the steepest and rowdiest sections with ease.
Why you'll love it
The all-new SB140 changes tack with recent changes including its 29” wheels and redesigned carbon frame, all while staying true to its time-tested design that’s made it a hallmark of the Yeti range for years.
Pointing up, down, or traversing the ridge, the SB140 impresses across the whole mountain.
Riders can choose the LR version for more travel and spicier components and both models come with improved downtube clearance and protection so you can smash descents at full gas.
Click to watch the Yeti SB140 video
What's new on the Yeti SB140?
Meet the Yeti SB140 and SB140 LR below and learn about their newest upgrades for 2023.
Two Model Types
The 2023 SB140 comes in a standard build as well as the Lunch Ride (LR) version with 10mm of additional travel (160mm instead of 150mm), wider rear rubber, and more powerful brakes.
Riders can choose between both of these models and pick the impressive componentry package that best suits their needs.
The LR model has slightly slacker frame geometry.
Bigger 29” hoops
Previously outfitted with 27.5” wheels, the new SB140 goes big with 29er hoops.
Yeti continues to offer the older setup so riders have more choices than ever to satisfy their trail needs.
The larger 29” wheels allow this purebred trail bike to attack hard-hitting terrain that’s typically reserved for enduro bikes and maintain speed on the descents.
Size SPecific Builds
Yeti has revisited every inch of the SB140 frame in order to customize the geometry of each frame size.
There are size-specific seat tube angles and chainstays that are proportionate to riders’ measurements so every rider can enjoy a balanced ride feel, regardless of their height.
Yeti has also adjusted the reach and head angle numbers. The SB140 and SB140 LR are available in sizes S-XXL.

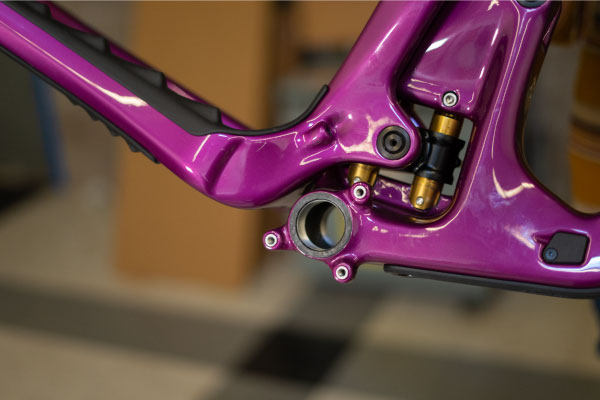

Redefined Frame Design
Send it down the slopes with fewer worries about frame damage thanks to a new high-clearance downtube with undercarriage protection.
The dual-density downtube shield is composed of cushioning rubber and an external hard cap to ward off any frame damage.
There’s a shorter seat tube to accommodate longer dropper posts to enhance your time on the trails. Riders can opt for C/Series or lightweight TURQ carbon frames.

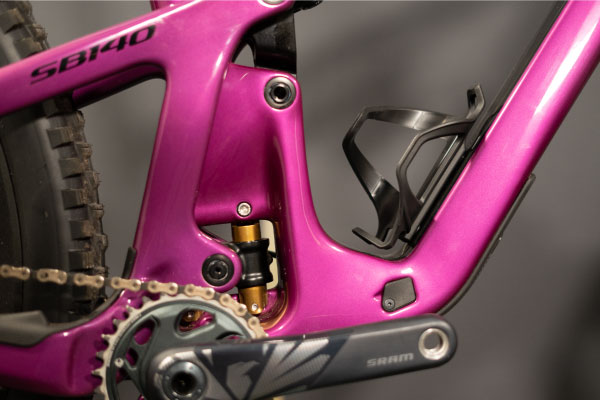

Improved Switch Infinity
New for this year, each T-Series Carbon frame comes with Yeti’s latest Switch Infinity design.
The innovative pivot system allows the bearing to switch direction as the bike moves through its entire travel, effectively curating the anti-squat values.
This unique piece of tech achieves both higher climbing efficiency and a bottomless feel in steep and chunky sections.
Yeti SB140 Geometry
The SB140 is fine-tuned for aggressive trail riding and stability for when the going gets steep. The LR version boasts a slack head tube angle of 65° for a controlled, predictable ride and a 77° effective seat tube so you can really put the power down.
The similar SB140 increases those specs by about half a degree each, allowing the bike to feel and handle excellently on climbs, descents, and wherever else your adventure leads.
| Yeti SB140 Geometry (150mm fork) | S | M | L | XL | XL |
|---|---|---|---|---|---|
| SEAT TUBE LENGTH | 365 | 400 | 440 | 470 | 485 |
| EFF. TOP TUBE LENGTH | 571 | 602 | 623 | 650 | 670 |
| HEAD TUBE ANGLE° | 65.4 | 65.4 | 65.4 | 65.4 | 65.4 |
| EFF. SEATTUBE ANGLE° | 77.5 | 77.5 | 77.5 | 77.5 | 77.5 |
| ACTUAL SEATTUBE ANGLE | 72.2 | 72.6 | 72.8 | 73.2 | 73.7 |
| CHAINSTAY LENGTH | 436 | 438 | 440 | 442 | 444 |
| WHEELBASE | 1184 | 1217 | 1242 | 1273 | 1300 |
| ESTIMATED BB HEIGHT | 339 | 339 | 339 | 339 | 339 |
| STANDOVER | 722 | 729 | 733 | 735 | 740 |
| HEADTUBE LENGTH | 92 | 95 | 100 | 112 | 134 |
| FORK (AXLE TO CROWN) | 565 | 565 | 565 | 565 | 565 |
| FORK (OFFSET) | 44 | 44 | 44 | 44 | 44 |
| STACK | 614 | 617 | 621 | 631 | 651 |
| REACH | 435 | 465 | 485 | 510 | 525 |
| FRONT CENTER | 748 | 779 | 802 | 831 | 856 |
| VERTICAL FORK TRAVEL | 136 | 136 | 136 | 136 | 136 |
| Yeti SB140 Lunch Ride Geometry (160mm fork) | S | M | L | XL | XXL |
|---|---|---|---|---|---|
| SEAT TUBE LENGTH | 365 | 400 | 440 | 470 | 485 |
| EFF. TOP TUBE LENGTH | 573 | 603 | 624 | 652 | 671 |
| HEAD TUBE ANGLE° | 65.0 | 650 | 65.0 | 65.40 | 65.0 |
| EFF. SEATTUBE ANGLE° | 77.0 | 77.0 | 77.0 | 77.0 | 77.0 |
| ACTUAL SEATTUBE ANGLE | 71.8 | 72.2 | 72.4 | 72.8 | 73.3 |
| CHAINSTAY LENGTH | 436 | 438 | 440 | 442 | 444 |
| WHEELBASE | 1188 | 1221 | 1246 | 1277 | 1304 |
| ESTIMATED BB HEIGHT | 342 | 342 | 342 | 342 | 342 |
| STANDOVER | 726 | 733 | 737 | 739 | 744 |
| HEADTUBE LENGTH | 92 | 95 | 100 | 112 | 134 |
| FORK (AXLE TO CROWN) | 575 | 575 | 575 | 575 | 575 |
| FORK (OFFSET) | 44 | 44 | 44 | 44 | 44 |
| STACK | 617 | 620 | 625 | 635 | 655 |
| REACH | 430 | 460 | 480 | 505 | 520 |
| FRONT CENTER | 752 | 783 | 806 | 835 | 860 |
| VERTICAL FORK TRAVEL | 145 | 145 | 145 | 145 | 145 |
Yeti SB140 Size Chart
The SB140 is available in sizes S-XXL. Find your correct frame size using this model-specific size chart below.
| Size | Rider Height |
|---|---|
| S | 155 - 170 cm 5'1" - 5'7" |
| M | 165 - 180 cm 5'5" - 5'11" |
| L | 178 - 191 cm 5'10" - 6'3" |
| XL | 185 - 201 cm 6'1" - 6'7" |
| XXL | 195 - 210 cm 6'5" - 6'11" |
Yeti SB140 For Sale
Or compare and contrast them at a glance below:
Want to get the scoop on inventory?
Yeti SB140 C1
Frame: C/Series Carbon
Fork: Fox Performance 36, 150mm
Shock: Fox Performance Float DPS
Drivetrain: Shimano SLX
Wheels: Crank Brothers Synthesis Enduro
Brakes: Shimano SLX 4-piston
Price: $6,400
Yeti SB140 LR C1
Frame: C/Series Carbon
Fork: Fox Performance 36, 160mm
Shock: Fox Performance Float X
Drivetrain: Shimano SLX
Wheels: Crank Brothers Synthesis Enduro
Brakes: Shimano SLX 4-piston
Price: $6,600

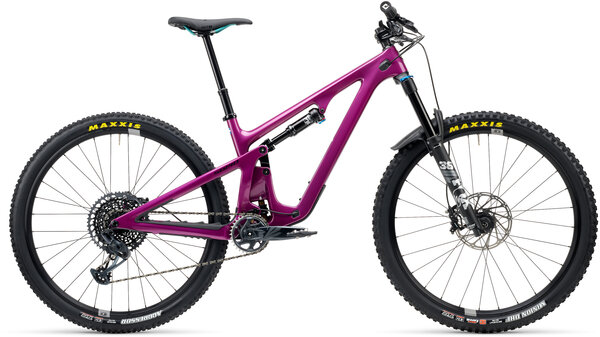

Yeti SB140 C2
Frame: C/Series Carbon
Fork: Fox Performance 36, 150mm
Shock: Fox Performance Float DPS
Drivetrain: Shimano GX Eagle
Wheels: Crank Brothers Synthesis Enduro
Brakes: SRAM G2 R
Price: $6,700
Yeti SB140 LR C2
Frame: C/Series Carbon
Fork: Fox Performance 36, 160mm
Shock: Fox Performance Float X
Drivetrain: Shimano GX Eagle
Wheels: Crank Brothers Synthesis Enduro
Brakes: SRAM Code R
Price: $6,900

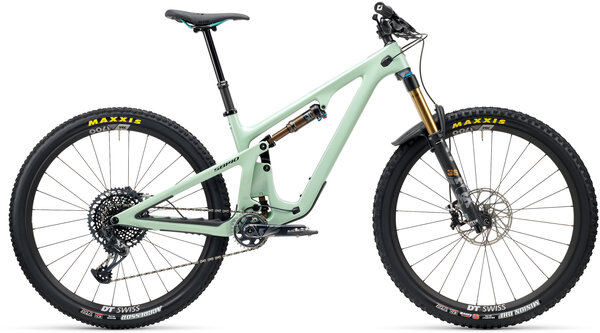

Yeti SB140 T2
Frame: TURQ Series Carbon
Fork: Fox Factory 36 Fit 4, 150mm
Shock: Fox Factory Float DPS
Drivetrain: SRAM X01 Eagle
Wheels: DT Swiss XM1700
Brakes: SRAM G2 RSC
Price: $8,600
Yeti SB140 LR T1
Frame: TURQ Series Carbon
Fork: Fox Factory 36 Grip 2, 160mm
Shock: Fox Factory Float X
Drivetrain: SRAM X01 Eagle
Wheels: DT Swiss XM1700
Brakes: SRAM Code RSC
Price: $8,800
Yeti SB140 T3
Frame: TURQ Series Carbon
Fork: Fox Factory 36 Fit 4, 150mm
Shock: Fox Factory Float DPS
Drivetrain: SRAM XX1 Eagle AXS
Wheels: DT Swiss XM1700
Brakes: SRAM G2 RSC
Price: $10,000
Yeti SB140 LR T3
Frame: TURQ Series Carbon
Fork: Fox Factory 36 Grip 2, 160mm
Shock: Fox Factory Float X
Drivetrain: SRAM XX1 Eagle AXS
Wheels: DT Swiss XM1700
Brakes: SRAM Code RSC
Price: $10,200
Yeti SB140 T4
Frame: TURQ Series Carbon
Fork: Fox Factory 36 Fit 4, 150mm
Shock: Fox Factory Float DPS
Drivetrain: SRAM XX1 Eagle AXS
Wheels: DT Swiss XM1700
Brakes: SRAM G2 Ultimate
Price: $11,500

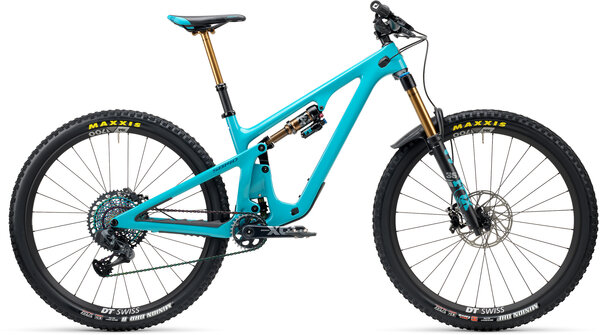

Yeti SB140 LR T4
Frame: TURQ Series Carbon
Fork: Fox Factory 36 Grip 2, 160mm
Shock: Fox Factory Float X
Drivetrain: SRAM XX1 Eagle AXS
Wheels: DT Swiss XM1700
Brakes: SRAM Code RSC
Price: $11,700
Yeti SB140 FAQs
Is the Yeti SB140 a trail bike?
Yes, its medium-length suspension is perfect for a variety of trails and strikes the right balance between climbing and descending prowess.
What's the difference between TURQ and C/Series carbon?
The main difference between the two carbon materials are weight and cost. The C/Series carbon has the strength and stiffness of the more expensive TURQ material, but weighs about 225g per frame more.
How much does the Yeti SB140 cost?
Depending on the frame material and component package, the five versions of the SB140 can cost between $6,400 and $11,500.
What is the SB140 LR (Lunch Ride)?
The SB140 LR model comes with a 160mm front fork instead of 150mm as well as a slightly wider rear tire and more powerful SRAM brakes.
What is the Yeti Switch Infinity system?
The Switch Infinity system is a pivot suspension design at the rear of the bike where the bearing actually switches directions as the bike moves through its travel.
What is the Yeti SB140’s tire clearance?
29 x 2.6"
