Details

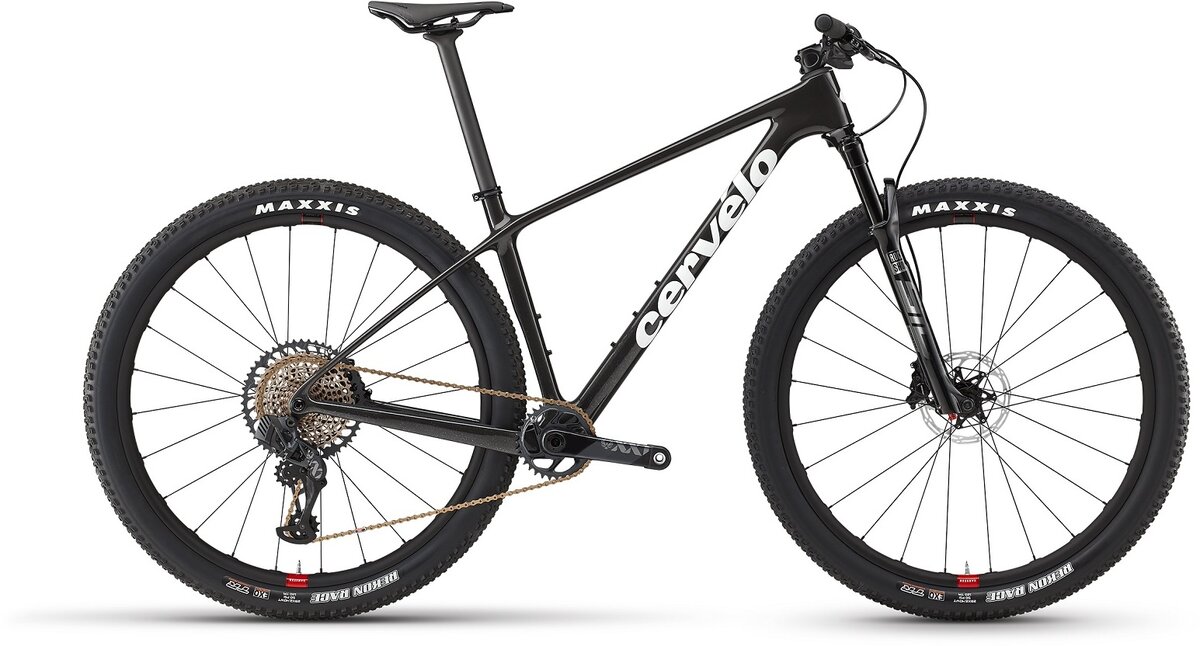

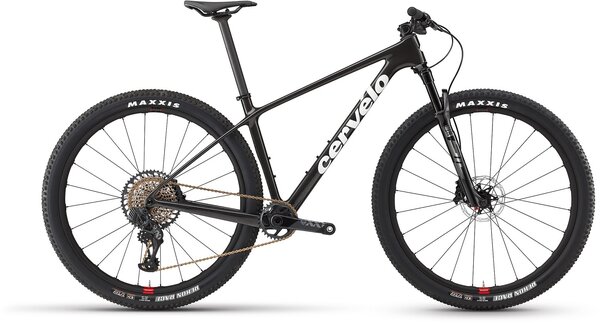

ZHT-5 is fast, efficient, and even a bit fun. It’s not on the lunatic fringe of longer and slacker, but the 68.5-degree head tube angle and rationally progressive geometry combine to keep the rider's weight centered and stable. It's comfortable, fast downhill, nimble enough for pack racing, and stable at speed.
We have decades of experience designing bikes that fly up hors categorie climbs at the Tour, and then descend confidently and aggressively down the other side. We sought to bring this same balance to a purpose-built XCO race bike. ZHT-5 is prized by those who value efficiency over all else—and who have the skills to tame today's technical courses.
Specs
Frame | ZHT-5 Carbon |
---|---|
Fork | RockShox SID SL Ultimate 29” 100mm 44 offset |
Headset | FSA IS2 1-1/2 x 1-1/2 |
Rims/Wheels | Reserve 28 XC, 28mm IW, tubeless compatible |
Hubs | Front: i9 1/1, 15x110mm, 24H, centerlock Rear: i9 1/1,12x148mm, XD freehub, 24H, centerlock |
Tires | Maxxis Rekon Race Black, 29”x2.4”, EXO 120TPI |
Crankset | SRAM XX1 Eagle Boost 148 Dub Grey 32T |
Bottom Bracket | SRAM DUB, BSA 73mm |
Chain | SRAM XX1 Eagle, 12 speed |
Rear Derailleur | SRAM XX1 Eagle AXS w/ Battery Protector |
Rear Cogs | SRAM XG 1299 Eagle 10-52T Copper |
Shifters | SRAM AXS Controller R Rocker |
Handlebars | RaceFace Next 35, 10mm rise Carbon |
Stem | RaceFace Aeffect 35 6 Degree Alloy |
Brakes | SRAM Level Ultimate |
Saddle | Prologo Dimension NDR Nack |
Seat Post | Cervélo SP29 Carbon 30.9 |
Color(s) | Five Black |
Sizes | Small, Medium, Large, X-Large |
* Subject to change without notice.
Videos
Unboxing & Build - Cervelo ZHT-5 GX AXS
Ryan unboxes and builds the all new Cervelo mountian bike, ZHT-5 in GX AXS trim. We are super stoked to see Cervelo jump into the mtb arena and their first offering is right in line with everything you would expect from the brand.
