OPEN WI.DE. Frameset
Details
The OPEN WI.DE. gravel bike frame gets its name from the Winding Detours you’ll take once you start exploring the potential of this infinitely capable ride.
This frameset is perfect for those who want to ride without limits. With multiple setup options, you can make yourself a speedy gravel grinder, a nimble trail explorer, an unstoppable bikepacking rig, or the perfect combination of everything.
OPEN has combined a few killer design concepts into one go-anywhere, do-anything frame. At a glance, it’s an incredibly versatile carbon fiber gravel frame with:
- compatibility for 700c or 650b wheels
- massive tire clearance
- nimble, performance-minded geometry
- narrow, road bike Q factor
- mounts on mounts for extra water and gear storage
With tire clearance for either 700c x 46mm or 650b x 2.4”, there’s nothing holding you back from taking on any adventure you choose. All that rubber means an extremely comfortable ride, allowing you to go longer and farther than ever. Run slicks or something knobbier and choose your off road destiny.
Don’t be fooled, just because the WI.DE. is built to accommodate those big tires doesn’t mean it’s sluggish. Far from it. The OPEN team designed the geometry for maximum performance on all surfaces. That means you’ll keep an efficient, power-generating position on the bike and enjoy snappy, nimble handling when things get technical. Plus, the narrow Q factor promotes a comfortable, natural pedal stroke.
Keep it clean with just a couple water bottles or load it up with bikepacking bags for a wild adventure. OPEN has thoughtfully placed mounts on the down tube, top tube, bottom bracket, and main triangle. With all those options, you can bring the gear you need for all-day epics, fast-paced overnighters, long weekends, and big trips.
Tied together with OPEN’s unique carbon layup, the WI.DE. gravel frameset offers the best combination of stiffness, weight, durability, and comfort. It’s an absolute dream for riders who want the freedom to do anything anywhere, and the technical capability to do it with speed and style.

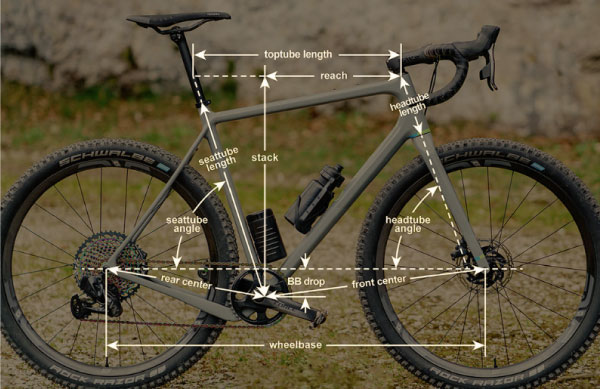

| XS | S | M | L | XL | |
|---|---|---|---|---|---|
| rider height¹ | <5’5" | 5’3"-5’7" | 5’6"-5’11" | 5’10"-6’3" | 6’2"-6’8" |
| stack | 520 | 545 | 570 | 595 | 620 |
| reach | 346 | 358 | 370 | 382 | 394 |
| standover² | 707 | 739 | 777 | 794 | 817 |
| headtube angle | 68.0° | 69.0° | 71.0° | 71.5° | 71.5° |
| headtube length | 99 | 125 | 150 | 170 | 196 |
| fork offset | 50 | 50 | 50 | 50 | 50 |
| seattube length | 464 | 495 | 530 | 550 | 564 |
| seattube angle | 72.5° | 72.5° | 72.5° | 72.5° | 72.5° |
| seattube angle (norm.³) | 74.5° | 74.0° | 73.5° | 73.5° | 73.5° |
| toptube length | 510 | 530 | 550 | 570 | 590 |
| toptube length (norm.³) | 490 | 515 | 540 | 560 | 580 |
| BB drop | 80 | 77 | 75 | 75 | 75 |
| front center | 583 | 596 | 599 | 613 | 634 |
| rear center | 420 | 420 | 420 | 420 | 420 |
| wheelbase | 990 | 1004 | 1009 | 1022 | 1042 |
Estimates; for accuracy use stack/reach of your current gravel/road bike or a fit session.
² Standover to the top of the toptube directly above the BB (varies with tire size).
³ Normalized dimensions to compare to frames with standard (non-zero-offset) seattubes.

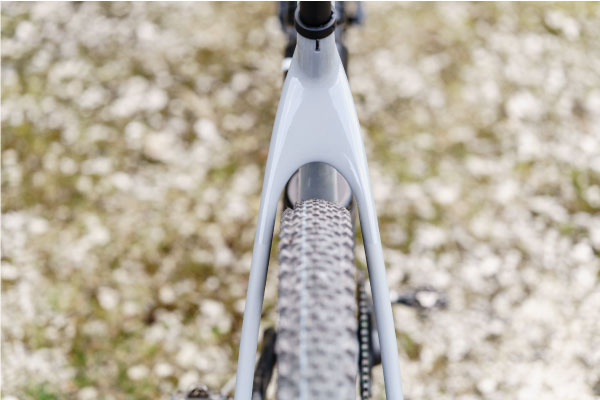

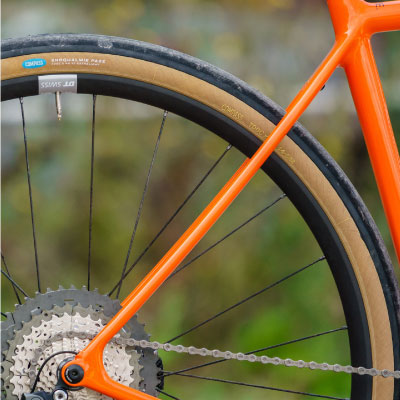

The OPEN WI.DE. can fit 700c tires up to 46mm, although 35-40mm is recommended.
When running 650b wheels, the WI.DE. can accomodate tires up to 2.4".
All that rubber provides you with enough traction and comfort to ride with no limits.

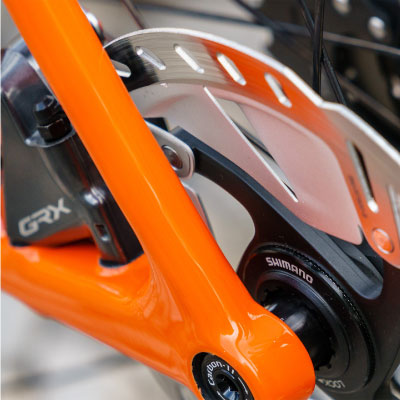

Say goodbye to the added weight of adaptors and spacers, because smart-mount allows you to attach your calipers right onto the frame and fork.

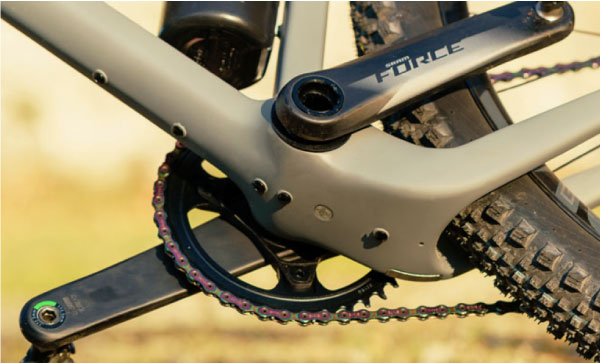

The double-dropped chainstay creates more tire clearance, improves stiffness, and reduces weight.
The seat and chain stays are vertically thin for compliance and laterally thicker for optimum power transfer.

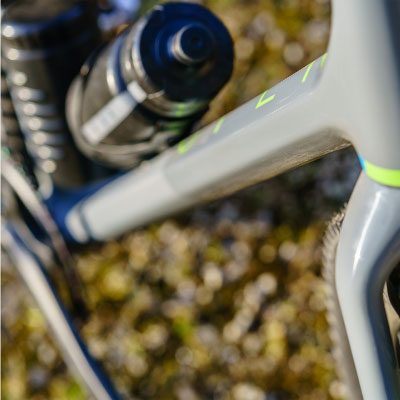

The flat sides of the downtube allow for a stronger layup for added stiffness.

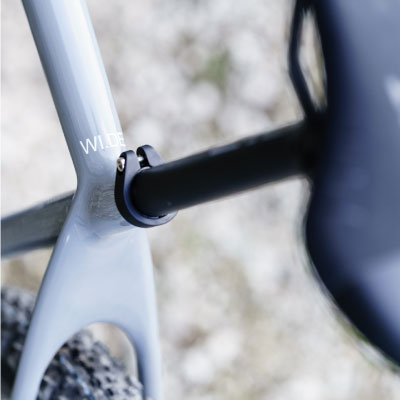

Zero-offset posts save weight and improve efficiency.

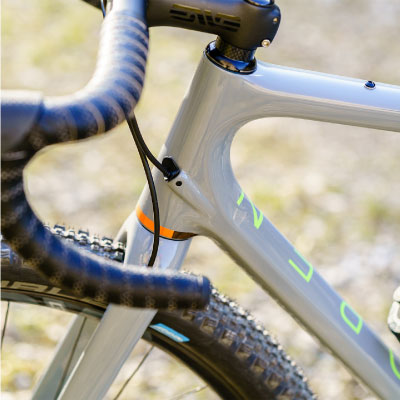

Keep your cables tidy, out of the way, and looking fresh.

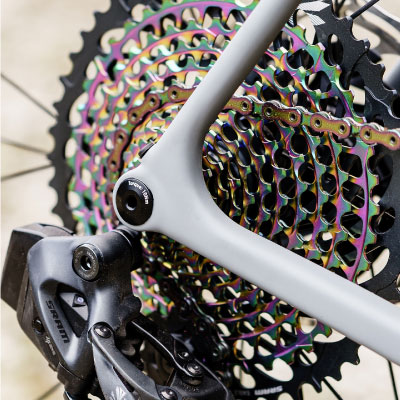

The ThruThread design holds both the axle and the derailleur hanger to cut back on weight and improve stiffness.
Specs
| Frame | TRCinTRS™ (the right carbon in the right spot) |
|---|---|
| Fork | OPEN U-Turn carbon fork |
| Headset | Integrated IS42/28.6 | IS52/40 |
| Crankset | Recommended - Shimano crank fit: All road cranks // SRAM crank fit : All GXP road, all DUB road, Force 1 BB30 |
| Chainrings | Maximum 1x ring size: 46t (flat ring), 42t (SRAM offset ring). This applies to most current generation cranks. Clearance depends on crank & chainring model. 2mm space is required. // Minimum 1x ring size: In standard set-up: 38t (flat & offset rings). Smaller rings can work depending on cassette/rear derailleur/chain length setup |
| Bottom Bracket | BB386EVO pressfit 86.5x46mm BB shell |
| Brakes | 160mm rotors only |
| Seat Post | compatible with 27.2mm diameter, standard set-up zero-offset |
| Seat Binder | included |
| Accessories & Extras | Headset, seattube collar, thru-axles, 2 RD hangers, 3 MultiStops (1x, Di2, eTap), cable exit stop, noise-reduction foam sleeves, bottle cage bolts, manual |
| Color(s) | Grey gloss/matte mix, Orange, RTD (Ready to Paint) |
| Sizes | XS/S/M/L/XL |
| Weight | Frame-only size M, ±3%: 1040g // Fork-only weight, ±3%: 390g |
| Other | Rear thru-axle: 142x12mm superlight Carbon-Ti X-12 // Front thru-axle: 100x12mm superlight Carbon-Ti X-12 |
* Subject to change without notice.
Videos
OPEN WI.DE.
Introducing The OPEN WI.DE.
Part Numbers
| Option | MPN | Store SKU |
|---|---|---|
| Grey (matte/gloss) / Medium | OPENWIDEXMGRY | OPE44273603T |
| Grey (matte/gloss) / Large | OPENWIDEXLGRY | OPE44356735T |
| Grey (matte/gloss) / X-Large | OPENWIDEXXGRY | OPE45664753T |
| Unpainted / X-Small | fr-wide-xs-rtp-2021 | |
| Unpainted / Small | fr-wide-s-rtp-2021 | |
| Unpainted / Medium | fr-wide-m-rtp-2021 | |
| Unpainted / Large | fr-wide-l-rtp-2021 | |
| Unpainted / X-Large | fr-wide-xl-rtp-2021 | |
| Orange (gloss) / Small | OPENWIDEXSORG | OPE37179464E |
| Orange (gloss) / X-Large | OPENWIDEXTBDORG | |
| Turq / Medium | OPENWIDEXMTURQ | OPE35642848M |
| Turq / Large | OPENWIDEXLTURQ | OPE35478882L |
