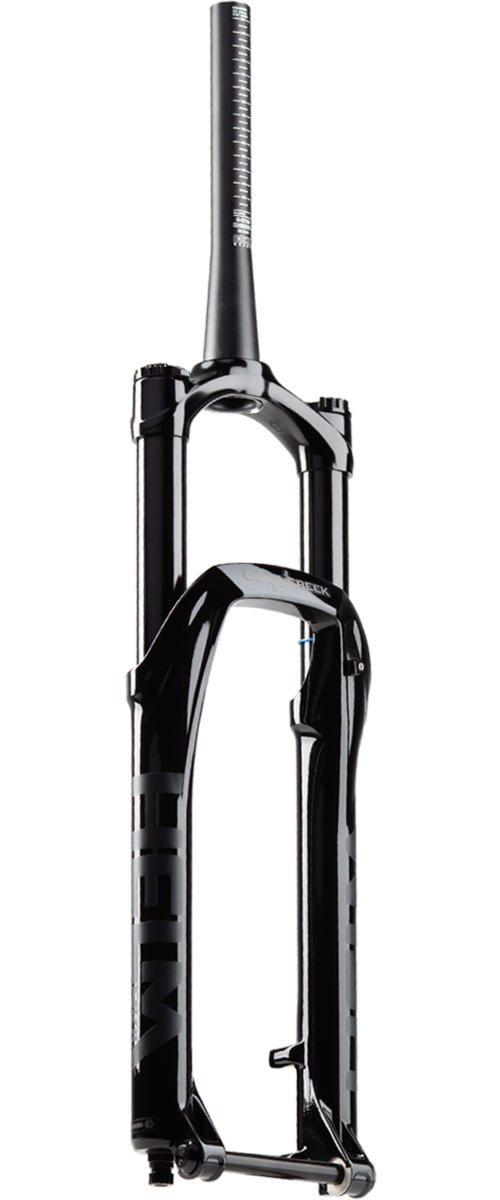

Cane Creek HELM MKII COIL 29

Cane Creek HELM MKII COIL 29
$1,049.99
Color:
Gloss Black
Wheel Size:
29"
Please select options

Details

Helm MKII Coil - Designed, Developed, Hand-Built By Riders
The Helm MKII is Cane Creek's first major revision of the Helm fork lineup and improves on its predecessor in nearly every way. It includes a newly designed damper featuring a new compression and mid-valve circuit for increased support and control while a new SKF oil seal head and 2.5 weight damper oil reduce friction and provide a more supple ride-feel.

The HELM MKII Coil includes all of the innovative features of the original HELM Coil fork including rider-adjustable travel which allows HELM MKII owners to change the travel of their fork at home with just a few common tools.

SKF LOW-FRICTION WIPER SEALS
The fork includes low-friction SKF wiper seals on the castings. These seals are typically seen as an after-marketing upgrade on most suspension forks, however they are a stock feature on the HELM MKII.

Accessory Free Travel Change
No additional accessories or parts are needed to change travel lengths on all Helm MKII Coil forks.

Updated Damper
The updated damper features a new compression and mid-valve circuit for increased support and control while a new SKF oil seal head and 2.5 weight Motorex damper oil reduce friction and provide a more supple ride-feel

Spring Recommendations
35lb spring – AAG0421 RED – (90-120lbs rider)
45lb spring – AAG0422 BLACK – (120-160lbs rider)
55lb spring – AAG0424 GREEN – (160-200lbs rider) ** Stock Spring in Helm Coil
65lb spring – AAG0426 BLUE – (200-240lbs rider)

The HELM MKII comes in 29/27.5+ and 27.5 wheel sizes with both air and coil sprung versions available. The 29/27.5+ version of the fork is available in 51mm and 44mm offset and is adjustable from 130mm to 160mm of travel while the 27.5 fork is available in 44mm offset only and is adjustable from 130mm to 160mm of travel. 29/27.5+ models of the fork will come in a gloss black finish with matte black stickers and the 27.5 model will come in a matte black finish with gloss black stickers. Aftermarket sticker kits are available in brushed silver and gold.

All forks are built to order by hand in Cane Creeks facility in North Carolina, USA.

  • New compression and midvalve circuit for increased support and control
  • New SKF low friction oil seal head cartridge
  • High performance damper oil from Motorex

New SKF low friction wiper seals installed in the castings.

Videos

HELM MKII

Part Numbers

Option UPC MPN Store SKU
Gloss Black / 44mm / 140mm / 29" 840226099187 BAG0690 CAN83924145K
Gloss Black / 51MM / 160MM / 29" 840226098661 BAG0678 CAN8392657K
Gloss Black / 51MM / 130MM / 29" 840226098296 BAG0675 CAN84790733K
