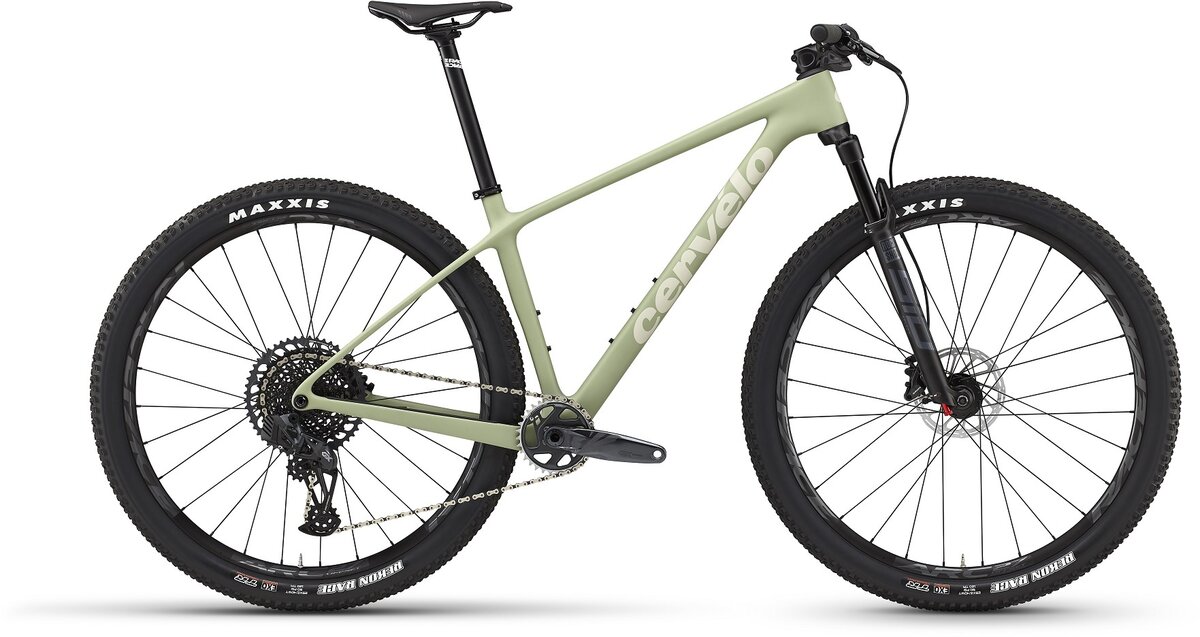

Cervelo ZHT-5 GX Eagle AXS

Cervelo ZHT-5 GX Eagle AXS
  • Color: Moss / Khaki
  • Color: Moss / Khaki
  • Color: Moss / Khaki
Please select options
Sorry, this item is currently not available for online purchase. Please email email us for availability.


We have decades of experience designing bikes that fly up hors categorie climbs at the Tour, and then descend confidently and aggressively down the other side. We sought to bring this same balance to a purpose-built XCO race bike. ZHT-5 is prized by those who value efficiency over all else—and who have the skills to tame today's technical courses without the benefit of a rear shock.

ZHT-5 is fast, efficient, and even a bit fun. It’s not on the lunatic fringe of longer and slacker, but the 68.5-degree head tube angle and rationally progressive geometry combine to keep the rider's weight centered and stable. It's comfortable, fast downhill, nimble enough for pack racing, and stable at speed.


Frame ZHT-5 Carbon
Fork RockShox SID SL Select RL 29 100mm 44 Offset
Headset FSA IS2 1-1/2 x 1-1/2
Rims/Wheels Race Face ARC Offset 27, 27mm IW, , tubeless compatible
Hubs Front: E*thirteen TRS Race TC, 15x110mm, 24H, 6 bolt Rear: E*thirteen TRS Race, 12x148mm, XD freehub, 28H, 6 bolt
Tires Maxxis Rekon Race, EXO 120TPI, 29x2.4
Crankset SRAM GX Eagle, 32T, Boost 148 DUB
Bottom Bracket SRAM DUB, BSA 73mm
Chain SRAM GX Eagle, 12 speed
Rear Derailleur SRAM GX Eagle AXS, 12 speed
Rear Cogs SRAM GX Eagle, 10-52, 12 Speed
Shifters SRAM GX AXS Rocker
Handlebars Race Face Aeffect Alloy, 35mm clamp, 760mm width, 10mm rise
Stem Race Face Aeffect Alloy, 35mm clamp, 6 degree
Brakes SRAM Level TL
Saddle Prologo Dimension NDR T4.0
Seat Post Race Face Ride XC Alloy 30.9

* Subject to change without notice.


Unboxing & Build - Cervelo ZHT-5 GX AXS

Ryan unboxes and builds the all new Cervelo mountian bike, ZHT-5 in GX AXS trim. We are super stoked to see Cervelo jump into the mtb arena and their first offering is right in line with everything you would expect from the brand.
