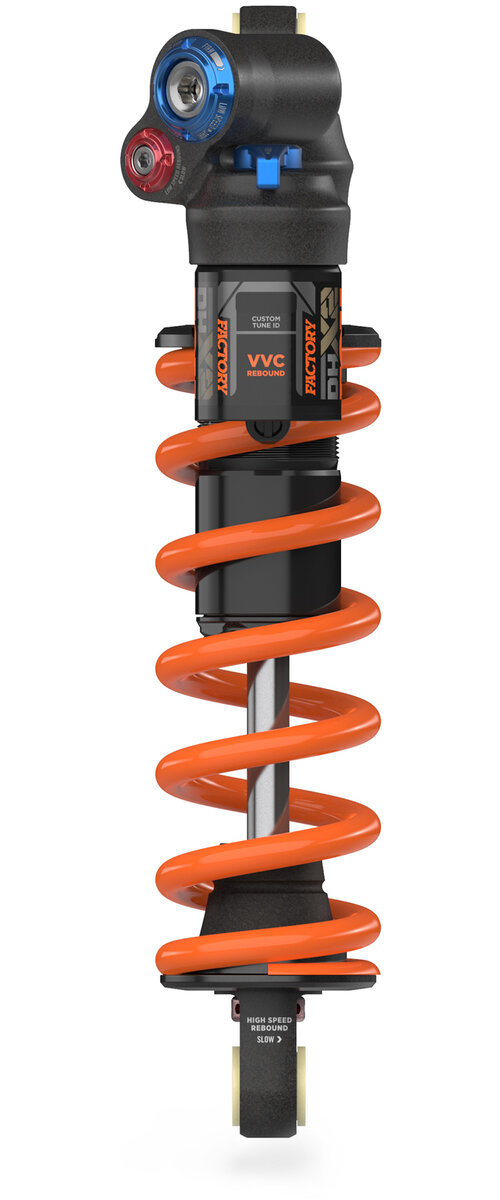

FOX FACTORY DHX2 SHOCK

FOX FACTORY DHX2 SHOCK
$679.00
Please select options

Details

Nothing sticks to the ground quite like a coil shock. The DHX2 takes that sensation and buttresses it with sophisticated progressive damping, a massive overall tuning range, and super low-friction internals in order to capitalize on the full race-spec magic carpet experience.
“Factory” says it all – feature-packed and designed to exceed the demands of our Factory-level riders. What we sell is what they race.

**Please Note: coil shocks and springs are sold separately**

SPECS & FAMILY FEATURES
NEW chassis & damper
NEW detents on spring collar to prevent loosening under light preload conditions
NEW high-flow main piston
NEW MCU bumper for increased end stroke progression and bottom out control
NEW ultra-low friction, highly durable hard chrome damper shaft finish
NEW improved high-speed rebound tunability via addition of VVC (Variable Valve Control)
NEW improved bearing ratio for metric sizes
NEW graphics
Matching 8-click HSC and HSR adjustment on GRIP2 forks and X2 shocks
Increased control and decreased harshness via linear damping
Steel outer body and finned inner body for improved structural rigidity and reduced hysteresis
Independent firm mode circuit – firmer lockout than previous DHX2
Reduced friction
Reduced length reservoir for better fit on more frames

ADJUSTMENTS
Optional 2-position Open/Firm lever (retains high and low speed compression adjustment)
High-speed compression - 8 clicks
Low-speed compression - 16 clicks
High-speed rebound (w/VVC) - 8 clicks
Low-speed rebound - 16 clicks
Coil spring preload - (new detents on spring collar)

Part Numbers

Option UPC MPN Store SKU
210x55 821973419848 978-01-049 2024938893O
230x60 821973419862 978-01-051 20249694161O
230x65 821973419879 978-01-052 20249192338O
230x57.5 821973419855 978-01-050 20250409297O
205x60 821973419923 978-01-057 2025753428O
